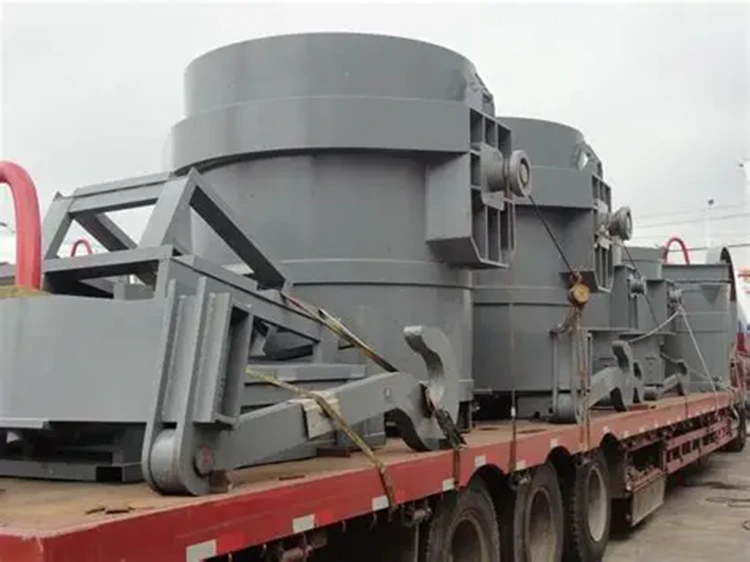

Tiltable Steel Ladle

This intelligent hydraulic Tiltable Steel Ladle is a core piece of equipment for precise molten steel pouring in the metallurgical and casting industry. It was independently developed by Yuexin Machinery Manufacturing Co., Ltd. in collaboration with a metallurgical design institute.  It adopts an integrated design of "hydraulic drive tilting + intelligent angle control + multiple safety protection," enabling stable transportation and precise 0-90° tilting and discharge of high-temperature molten steel at 1500-1650℃.

Product Parameter (Specification)

Product Features

Precise and controllable tilting: Equipped with an electro-hydraulic proportional servo valve and angle sensor, forming a closed-loop control system, achieving a tilting angle positioning accuracy of ±0.5°; supports both remote and local operation modes, and allows for pre-setting multiple tilting angle positions to adapt to different pouring scenarios, controlling discharge flow error within ±3%. Superior Structural Strength: The ladle body is integrally rolled from Q960 high-strength steel plate, and undergoes submerged arc automatic welding and flaw detection, with a 100% weld qualification rate; the trunnions are forged from 42CrMo alloy steel, and after heat treatment, the tensile strength is ≥1000MPa, capable of withstanding the combined load during tilting without risk of deformation or fracture.

Comprehensive High-Temperature Protection: The inner lining adopts a composite structure of "high-alumina corundum brick + heat-insulating castable + anti-seepage layer," with an Al₂O₃ content of ≥90%, improving resistance to molten steel erosion by 60%; the outside of the ladle body is equipped with a water-cooling jacket and heat shield, keeping the outer wall temperature ≤60℃, and the hydraulic system has a high-temperature shielding cover to ensure normal operation of components.

Strict Safety Guarantees: Equipped with a hydraulic lock and mechanical anti-fall pin double safety mechanism, automatically locking the tilting mechanism in case of sudden power failure; equipped with molten steel temperature measurement, liquid level monitoring, and pressure alarm devices, providing real-time feedback on operating status, meeting the Level 1 standard of the "Metallurgical Safety Production Regulations."

Application Scenarios

Widely used in steel metallurgy (converter/electric furnace molten steel pouring, continuous casting tundish replenishment), heavy casting (large machine tool beds, wind power flange casting), special steel production (mold steel, stainless steel precision casting), and other fields. It is especially suitable for the production of precision castings requiring high pouring speed and flow control, as well as automated production lines with multi-station rotating pouring, providing core support for efficient, safe, and precise molten steel pouring.

Hydraulic Tilting Mechanism Details: Close-up view of the hydraulic cylinder, electro-hydraulic proportional servo valve, and gear and rack transmission structure, showing the connection process between the cylinder and the trunnion; indicating the installation position of the angle sensor, explaining the closed-loop control logic of "sensor feedback - controller command - cylinder execution," demonstrating the hydraulic control technology strength of Yuexin Machinery.

Ladle Body and Lining Details: Enlarged view showing the reinforcing rib layout and weld flaw detection markings of the ladle body, displaying the layered masonry structure of the composite lining; close-up view of the splicing gaps of the corundum bricks and the anti-seepage layer treatment, explaining the anchoring method of the lining to the ladle body, and comparing the advantages of the service life of the traditional lining. Safety Locking Device Details:  Showcases the internal structure of the hydraulic lock and the insertion and locking mechanism of the mechanical anti-fall pin, explaining the interlocking working principle of the double safety mechanism; close-up shots of the emergency stop button and alarm indicator light illustrate the emergency handling procedures in case of sudden malfunctions, highlighting the safety and reliability of the equipment.

Intelligent Control Details: Displays the remote control terminal and local operating panel, labeling function buttons such as tilt angle preset, flow rate adjustment, and status monitoring; explains the linkage mechanism between the equipment and the workshop MES system, supporting production data traceability and demonstrating the product's automation and intelligence level.
