Double-Beam Sintering Trolley

This high-strength double-beam sintering trolley from Yuexin is a core load-bearing equipment for steel sintering production lines.  It was independently developed by Yuexin Machinery Manufacturing Co., Ltd. for large-scale sintering machine operating conditions, adopting an integrated design of "double-beam load-bearing structure + wear-resistant grate bars + flexible sealing". It can achieve continuous sintering and conveying of sintering raw materials such as iron ore powder at high temperatures of 1000-1300℃. It features high load-bearing strength and low material leakage rate. Compared with traditional single-beam trolleys, its structural rigidity is increased by 45%, and its service life is extended by 60%, making it a key equipment for achieving efficient and energy-saving production in steel plant sintering workshops.

Product Parameter (Specification)

Product Feature And Application

Product Features

High-strength double-beam structure: The Double-Beam Sintering Trolley frame adopts a Q690 high-strength steel double-beam welded structure, and undergoes overall aging treatment to eliminate welding stress, with a bending strength of up to 1200MPa; the crossbeams and longitudinal beams are connected using a mortise and tenon joint, reinforced with stiffeners, ensuring no deformation under heavy load and high-temperature conditions, and smooth and unobstructed trolley operation.

Excellent wear-resistant grate bar and discharge performance: The grate bars are cast from ZG35Cr24Ni7SiN heat-resistant and wear-resistant steel, and the surface is treated with aluminizing, increasing high-temperature wear resistance by 50%; the grate bars adopt a staggered arrangement design, with a ventilation area of over 35%, ensuring uniform sintering and reducing material leakage, with a leakage rate controlled within 0.5%.

Excellent sealing performance: A "elastic plate + graphite" composite sealing structure is used between the trolleys, and a side sealing device is equipped between the trolley and the track, effectively isolating the sintering flue gas from leaking out and reducing energy consumption; the sealing components are made of high-temperature resistant elastic materials, with a service life of over 8000 hours, reducing frequent replacement costs. Low Operating and Maintenance Costs: The wheels of the Double-Beam Sintering Trolley are forged from 42CrMo alloy steel, with a surface hardness of HRC58-62 after quenching treatment.  Combined with imported high-temperature resistant bearings, the failure rate is reduced by 80%; the grate bars feature a quick-release installation design, increasing replacement efficiency by 70%, and reducing the annual maintenance cost per trolley by 40%.

Application

The Double-Beam Sintering Trolley is widely used in sintering production lines in the steel and metallurgical industry, suitable for various specifications of sintering machines ranging from 180㎡ to 600㎡, undertaking the tasks of carrying, conveying, and sintering mixed materials such as iron ore powder, fuel, and flux.  Specifically, it is applied in the material distribution area, ignition area, high-temperature sintering area, and cooling area of the sintering machine. It is adaptable to different sintering processes, including acidic and alkaline processes, and is especially suitable for the high-intensity, continuous sintering production needs of large steel enterprises, providing core equipment support for improving the quality, energy efficiency, and cost reduction of sintered ore.

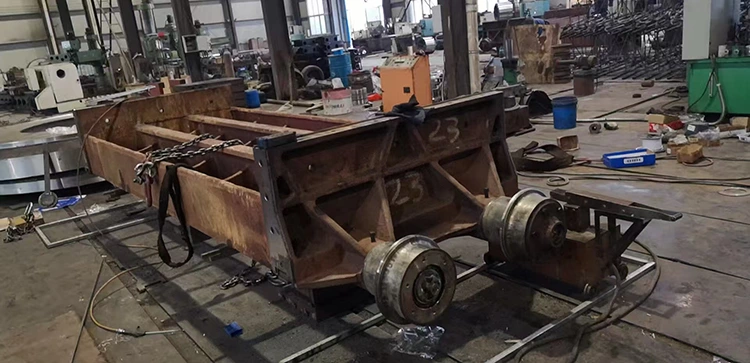

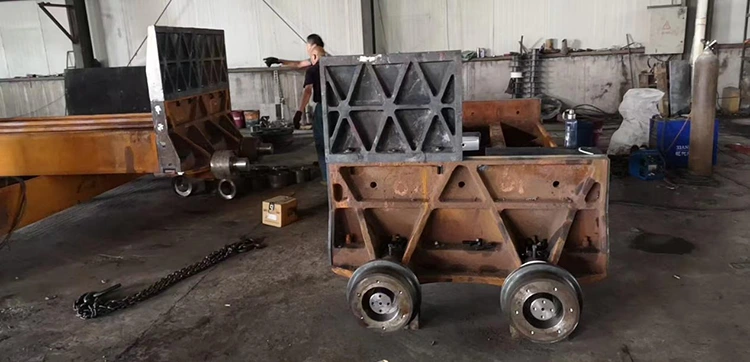

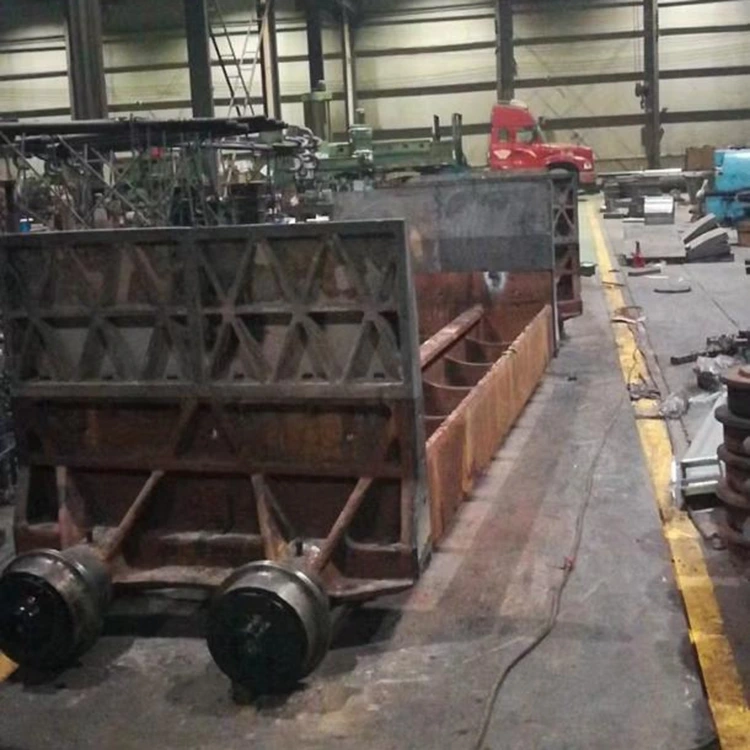

Double-Beam Frame Details: Close-up views of the welding seams, reinforcing rib layout, and overall structure of the double-beam frame, showcasing the frame's aging treatment markings and material testing report; illustrating the connection process between the double beam and the trolley panel, comparing the structural rigidity differences with traditional single-beam trolleys, demonstrating Yuexin Machinery's structural design and welding technology capabilities.

Grate Bar and Installation Details: Magnified views of the casting texture, aluminized layer gloss, and staggered arrangement structure of the grate bars, explaining the ventilation and anti-leakage principles of the grate bars; showcasing the snap-fit installation structure of the grate bars, explaining the quick replacement process, reducing downtime for maintenance.

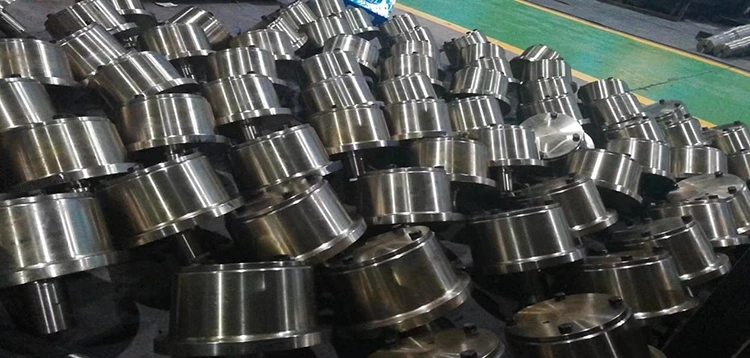

Wheel Set and Sealing Details: Showing the forging process of the wheels and the sealing structure of the bearing seat, explaining the precision control of the wheel and track fit; close-up view of the composite sealing device between the trolleys, explaining its elastic compensation function at high temperatures, reducing flue gas leakage and energy loss.

Heat Resistance and Protection Details: Showing the high-temperature resistant coating of the trolley panel and the heat insulation and protection measures of the frame, explaining the control of the impact of high temperatures on the core components of the trolley; showing the cleaning device interface of the trolley, explaining the cleaning scheme for residual sintered ore material, ensuring the long-term stable operation of the trolley.
