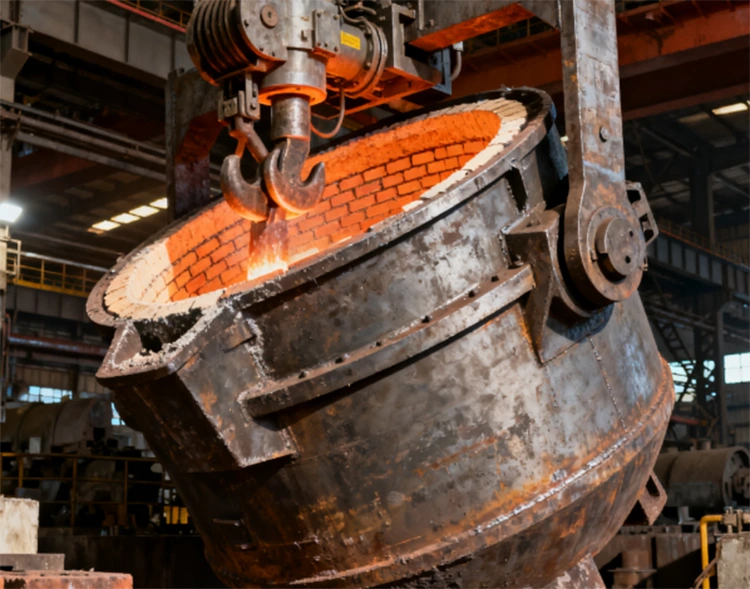

Tiltable Iron Water Ladle

Yuexin's Tiltable Iron Water Ladle is a core equipment for precise transfer and pouring of molten iron in steel metallurgical production. It adopts an innovative design of a tiltable structure + refractory lining, allowing for flexible handling, transfer, and pouring of molten iron.  It boasts advantages such as precise tilting angle, thorough molten iron pouring, and high operational safety, meeting the process requirements for molten iron transfer in ironmaking, steelmaking, and casting processes. It helps steel companies improve molten iron utilization and production efficiency, and is a key equipment for flexible molten iron transfer in steel metallurgical production lines.

Product Parameter (Specification)

Product Feature And Application

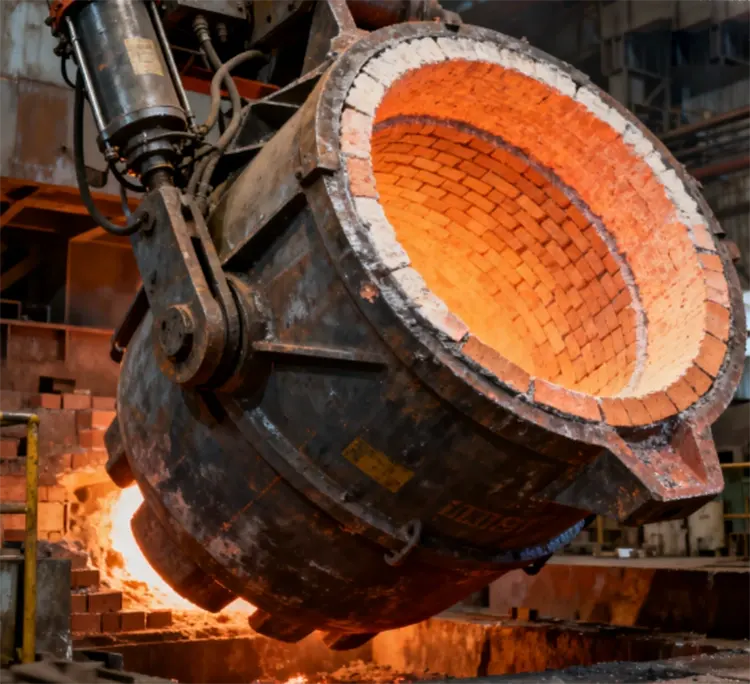

The tilting mechanism of this Tiltable Iron Water Ladle is very convenient, driven either by a hydraulic cylinder or an electric push rod. Both methods are very stable, allowing for precise angle adjustment.  Furthermore, the tilting mechanism has a self-locking function. In case of a sudden power outage or hydraulic oil failure, it can stably stop at the current angle without suddenly falling, ensuring high safety.

The lining inside the ladle isn't just simply laid bricks; it's a two-layer construction process, with a cast layer first, followed by a brick lining on the outside. This "double-layer protection" process is extremely reliable. It's resistant to erosion even when constantly immersed in high-temperature molten iron, remaining sturdy for three to five years – its durability is exceptional. When tilting and pouring molten iron, there's absolutely no splashing, and there's no worry about the mechanism suddenly losing control and shaking. Operators working nearby feel completely secure. It also features a tilting angle monitoring system, clearly displaying the current angle on the screen, making it especially suitable for casting operations in foundries that require precise control of molten iron volume.

This Tiltable Iron Water Ladle is not only used for transferring molten iron in ironworks and steelworks, but also indispensable for casting in foundries. Whether transporting molten iron from the blast furnace to the steelmaking furnace, or from the steelmaking furnace to the casting mold, it serves as a reliable "transfer container." In both steel plants and foundries, it's essential for fast and accurate molten iron transfer, making it a core piece of equipment on the production line.

Tilting Mechanism: Driven by a hydraulic cylinder or electric push rod, the transmission is completely stable and powerful, with extremely precise angle control; the built-in self-locking device maintains the angle even in case of power or hydraulic failure.

Ladle Body Structure: The outer shell is made of rolled and welded steel plates, with all welds specially inspected and free of defects; the bottom and walls of the ladle have a composite structure of "cast layer + brick lining," providing excellent sealing and doubled corrosion resistance.

Trunnion Assembly: The trunnion is machined from a single piece of forged steel and heat-treated after welding to the ladle body, making it both strong and tough. It can stably withstand the complex forces involved during the tilting of the molten iron ladle. Safety design: The ladle is equipped with an anti-detachment device and a cushioning mechanism, ensuring stability whether it's being lifted by a crane or tilting to pour molten iron; it's also equipped with a temperature monitoring instrument that can continuously monitor the temperature of critical parts of the ladle body, allowing for timely detection and prevention of accidents in case the lining is about to burn through.
