Scraper Conveyor

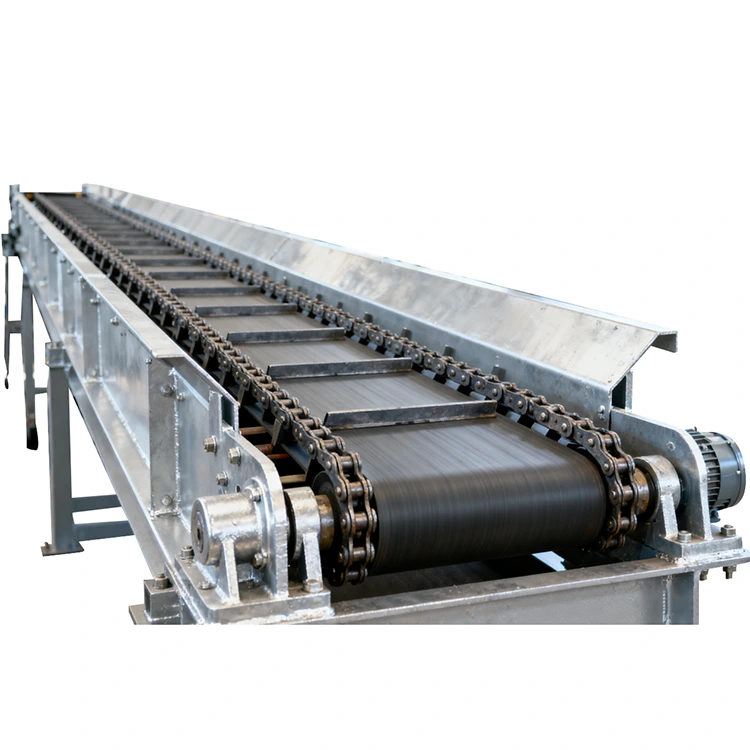

The working principle of Yuexin's Scraper Conveyor is very practical: it relies on a scraper chain for continuous traction, combined with a sealed trough to transport materials. Whether it's coal, ore, or grain, these bulk materials can be transported continuously and efficiently.

It offers series such as SGZ-630 and SGZ-764 (SGZ stands for scraper conveyor with a central double-chain structure). Conveying lengths range from 50 to 300 meters, with a capacity of 200 to 1500 tons of material per hour. Motor power ranges from 90 kW to 500 kW, and scraper chain speed is approximately 0.8 to 1.2 meters per second, allowing for slight deviations, generally not exceeding ±5% of the design value. Equipment weight varies from 15 to 80 tons, and specific parameters can be customized to customer requirements.

Product Parameter (Specification)

Product Feature And Application

The Scraper Conveyor boasts exceptional practical advantages: Strong material handling capacity, capable of handling steep inclines and long distances, meeting the material transfer needs of large-scale factory production; remarkably stable operation, thanks to its manganese steel central trough reinforced by welding for impact and wear resistance, and high-strength alloy steel scraper chain with a tensioning device to prevent deviation; capable of handling a wide range of materials, as long as the particle size does not exceed 300 mm, whether wet or sticky; thoughtfully designed with modular assembly for easy disassembly and repair, and equipped with safety devices such as chain breakage protection and overload protection for peace of mind.

Compared to traditional conveying equipment, the Scraper Conveyor reduces material breakage by over 20% and maintenance costs by 15%. It's suitable for various scenarios, including coal transportation in underground coal mines, ore and slag transfer in metallurgical plants, cement and sand transportation in building material plants, and grain and feed transfer in grain depots, providing an efficient and stable solution for bulk material transportation in these industries.
