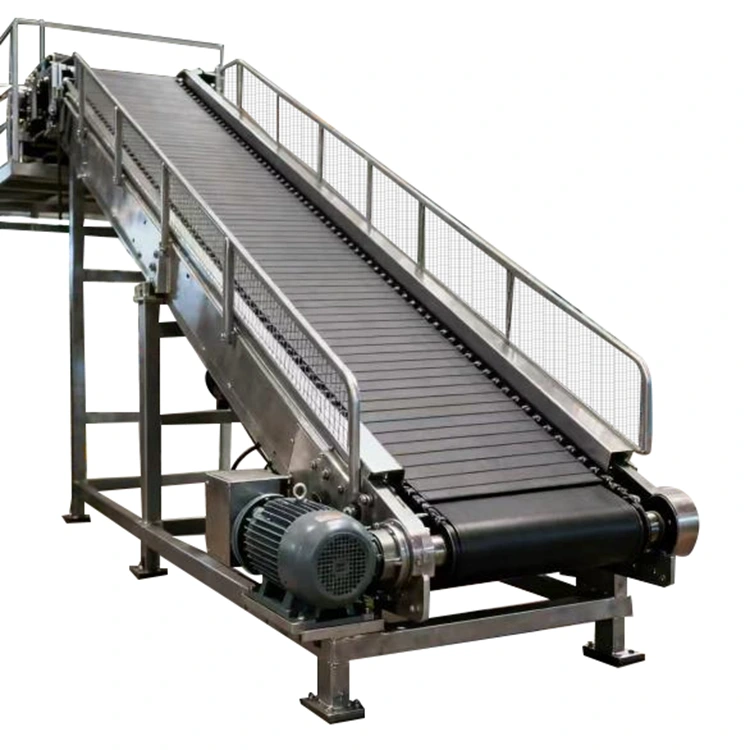

Plate-Type Elevator

These Plate-Type Elevators work very practically, relying on chain plates for loading and sprockets for propulsion, transporting materials like ores upwards with exceptional efficiency. Compared to older equipment, material damage is reduced by more than 20%, and electricity costs are reduced by 15%. Therefore, they are favored by industries such as mining, chemicals, and grain and oil processing.

Currently, the main models available are the BTH-500 and BTH-800 series, capable of lifting heights from 5 to 25 meters, transporting 20 to 150 cubic meters of material per hour, with motor power ranging from 7.5 kW to 45 kW, chain plate widths from 500 to 800 mm, and machine weights from 4 to 30 tons. Specifications can be modified to meet specific customer requirements.

Product Parameter (Specification)

Product Feature And Application

The advantages of this Plate-Type Elevator are worth mentioning: the chain plates are made of high-strength alloy, finely machined, and have exceptional load-bearing capacity, allowing a single machine to haul a significant amount of material; the sprockets and chain plates mesh precisely, and there are tensioning and anti-deviation devices, ensuring stable operation with minimal malfunctions; it can transport materials no larger than 200mm, from iron ore and fertilizer granules to grains, even if the materials are damp or abrasive; the machine is modular, simplifying assembly and repair; the sealed casing prevents dust from escaping, complying with clean production standards.

The chain plates are available in straight and edge-protected versions, preventing material slippage and ensuring optimal load-bearing capacity; the sprocket teeth and material are specially designed to work in conjunction with the chain plates for power transmission, guaranteeing reliable performance over extended periods; and the addition of tensioning devices, anti-deviation mechanisms, and overload protection further enhances its reliability. For vertical material transport jobs, such as transporting ore in mines, delivering raw materials in chemical plants, transferring grain and oil to grain, and lifting cement clinker from building materials plants, Plate-Type Elevator is the right choice.
