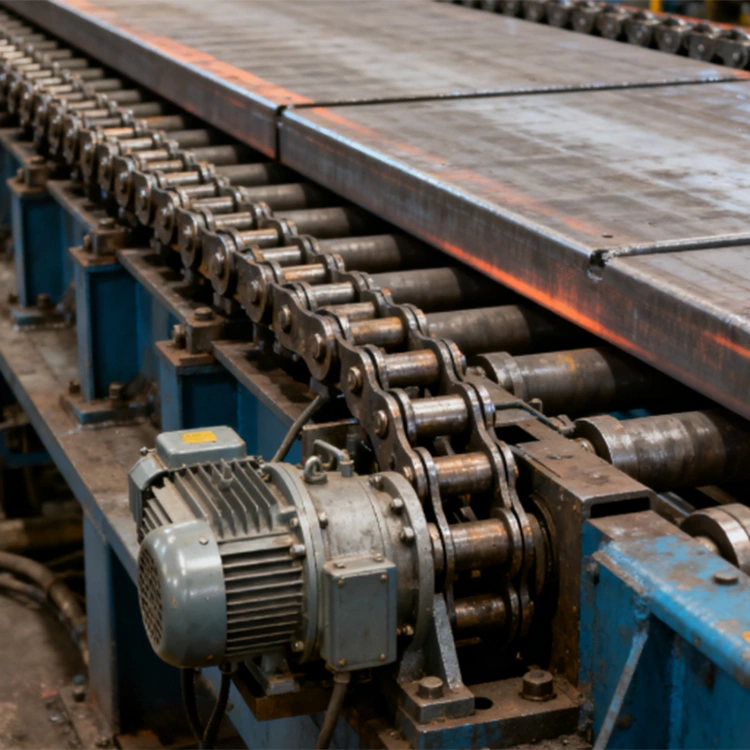

Transportation Chain-Type Cold Bed

In our rolling mill production lines, the Transportation Chain-Type Cold Bed plays a crucial role – it's responsible for cooling and transporting high-temperature workpieces (such as rebar and steel pipes) immediately after rolling.  Poor performance in this area compromises product quality. Yuexin's self-developed chain-type cold bed uses chains to transport workpieces and controls cooling in different zones, precisely controlling cooling time and conveying process, fundamentally guaranteeing product quality.

This equipment offers three major advantages: continuous feeding, fast cooling speed, and adaptability to various workpieces. Whether it's bars, pipes, or irregularly shaped steel, it can meet the cooling and conveying needs. Using it allows rolling mills to increase production capacity while maintaining consistent product quality, making it an essential component for ensuring workpiece performance and improving efficiency in modern production lines.

Product Parameter (Specification)

All parameters can be customized according to customer needs.

Product Feature And Application

The Transportation Chain-Type Cold Bed uses chain drive, allowing for continuous workpiece feeding, unlike older equipment that frequently stops. This significantly increases the speed of the production line and improves efficiency. The cooling area is divided into several sections, each with independently adjustable temperature control, coupled with optimized air circulation, ensuring uniform cooling of all parts of the workpiece. This maintains consistent hardness and toughness, preventing inconsistencies in product quality.

Regardless of the size or shape of the workpiece, the Transportation Chain-Type Cold Bed automatically adjusts the feeding speed and cooling intensity based on workpiece size and real-time temperature, eliminating the need for repeated manual adjustments and handling various production situations. The equipment continuously monitors key parameters such as chain tension and temperature, providing timely alerts if potential problems are detected. This allows for proactive maintenance, preventing sudden production line shutdowns and ensuring smooth operation.

It is suitable for production lines rolling bars, pipes, and irregularly shaped steel. The hot workpiece, freshly rolled and still at high temperature, relies entirely on this system to cool and transport it from the initial high-temperature state to subsequent finishing processes. It's a crucial aid for steel mills looking to expand their scale and improve production levels.

Chain Assembly: Durable and Robust

The chain is forged from carefully selected materials, with a hardened surface treatment. The pitch is exceptionally precise, ensuring a stable engagement with the sprocket. It's wear-resistant and fatigue-resistant, and won't easily break even with continuous operation.

Conveying Mechanism: Stable and Accurate

Composed of conveying beams and support rollers, it's firmly connected to the chain, providing stable support for the workpiece. During transportation, the workpiece won't wobble or slip.

Cooling System: Precise Temperature Control

Using segmented nozzles, it can precisely adjust the water volume and air speed based on the workpiece's location and temperature, allowing for targeted cooling and more effective cooling results.

Control System: Easy Operation and Traceability

Equipped with a PLC and central control platform, parameters can be set remotely, and a 3D view of the equipment's operation is available. Production data is stored, allowing for easy retrieval of information on any batch of work, facilitating management and decision-making.
