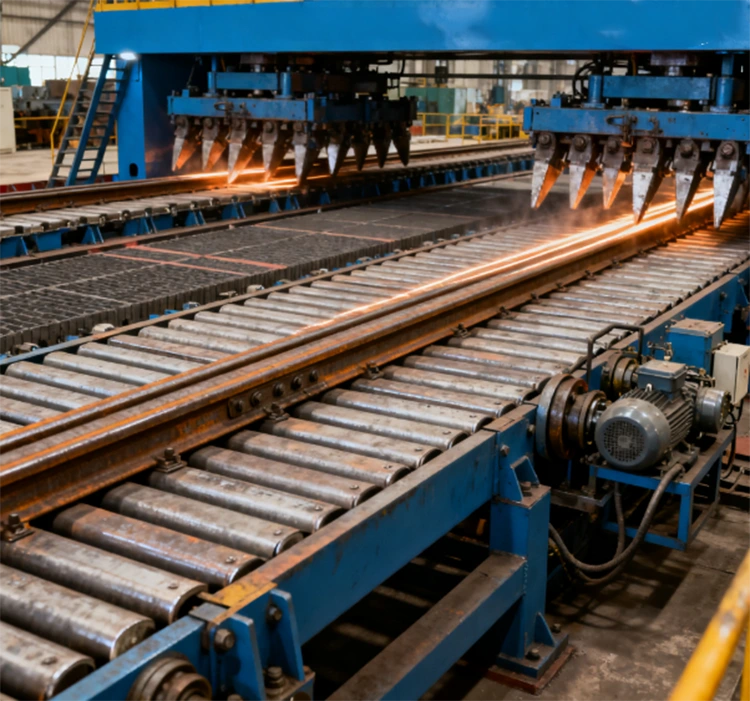

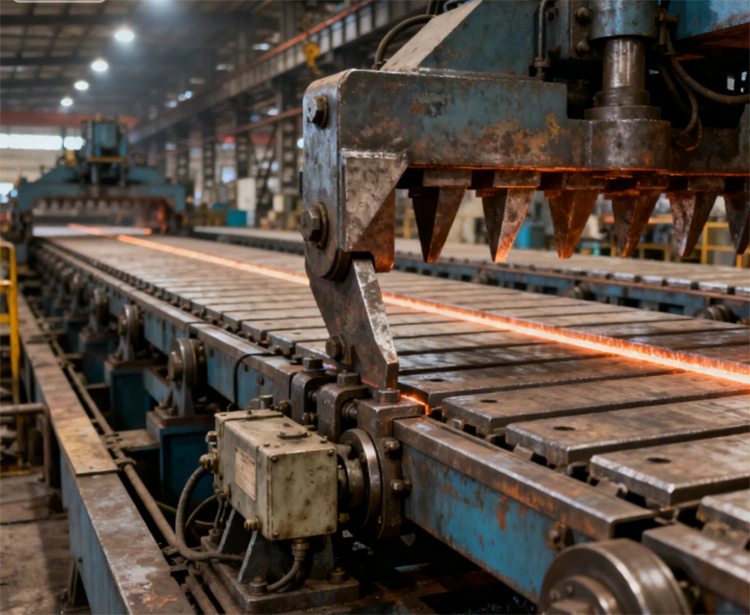

Pawl-Type Cooling Bed

Yuexin's Pawl-Type Cooling Bed is a key piece of equipment in steel rolling production, primarily used for cooling high-temperature steel and smoothly transporting it to the next process. It utilizes a pawl-type drive and segmented cooling design, allowing for precise control of the steel's cooling speed and conveying path. It is suitable for various steel products, including bars, wires, and sections, offering high cooling efficiency and stable operation. It helps enterprises increase production speed and improve product quality, making it an indispensable core equipment in the steel rolling production line.

Product Parameter (Specification)

All parameters can be customized according to your needs, perfectly matching your production line requirements.

Product Feature

The Pawl-Type Cooling Bed's pawl drive is highly flexible, allowing for continuous, step-by-step movement of the steel, preventing stacking and scratching.

The cooling area is segmented, ensuring reasonable airflow and uniform cooling of all parts of the steel, resulting in more stable product performance.

The equipment is compact and space-saving, adaptable to various production line layouts, and easy to maintain, saving significant operating costs.

Equipped with intelligent monitoring functions, allowing for real-time monitoring of steel temperature and equipment operation, making control easier.

Applications

Suitable for steel rolling production lines of bars, wires, and sections. The Pawl-Type Cooling Bed cools high-temperature rolled steel and smoothly transports it to the finishing process, making it essential equipment for enterprises aiming for efficient and high-quality production.

Pawl Components: Made of high-strength and wear-resistant materials, the pawl shape conforms to the steel's profile, ensuring a secure grip and durability.

Drive system: Composed of a motor, reducer, and connecting rod mechanism, it offers high transmission efficiency and precise control over the distance and speed of the claw movement.

Bed surface device: The bed surface material has excellent heat dissipation properties and is equipped with numerous support rollers and beams to ensure that the steel remains flat and does not deform during cooling.

Control system: Equipped with a PLC and human-machine interface, it is easy to operate, allowing for one-button parameter setting, real-time display of equipment operating status, fault warnings, and historical data viewing.
