Jaw Crusher

Yuexin Machinery's jaw crusher can be customized in terms of feed opening size and capacity, perfectly matching the crushing production lines of small and medium-sized mineral processing plants and sand and gravel plants. The equipment has also passed CE/ISO certification and comes with a one-year warranty, ensuring peace of mind in terms of quality and after-sales service. The product has won global customer recognition for its high cost-performance ratio and has been exported to more than 20 countries in Europe, America, and Southeast Asia, accumulating rich industry experience and a good market reputation.

This jaw crusher is specifically designed for processing hard materials such as granite and basalt, with particularly strict material selection for its core components. The crushing chamber is made of high-manganese steel, and the frame is made of cast steel, with a maximum feed size of 600 mm. Furthermore, the advanced eccentric shaft structure ensures stable operation, long service life, simple installation, worry-free maintenance, and easy operation, balancing performance and practicality.

Product Parameter (Specification)

Product Feature And Application

This jaw crusher boasts four core advantages: a high-manganese steel crushing chamber that is wear-resistant and impact-resistant, offering a large crushing ratio; an eccentric shaft combined with an elbow plate structure for stable operation and low failure rate; a flexibly adjustable discharge port to meet different output particle size requirements; and a sealed design that prevents dust and noise, meeting environmental standards. It is widely used in various fields such as coarse crushing of ores in mining, resource recovery of construction waste, crushing of building materials, and crushing of metallurgical slag.

Production Details

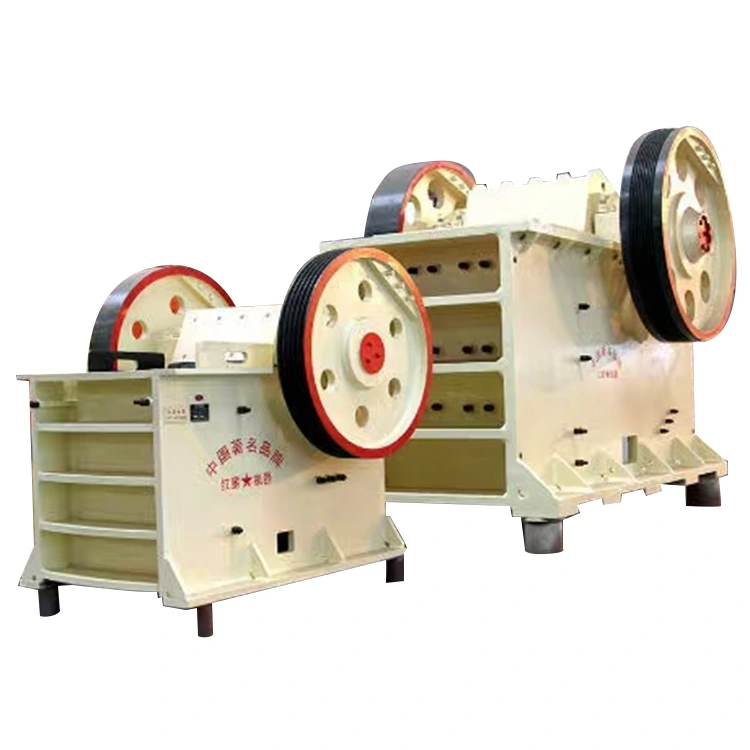

1.Overall Appearance (Front View): The integrated cast steel frame and wide feed opening design accommodate large materials.

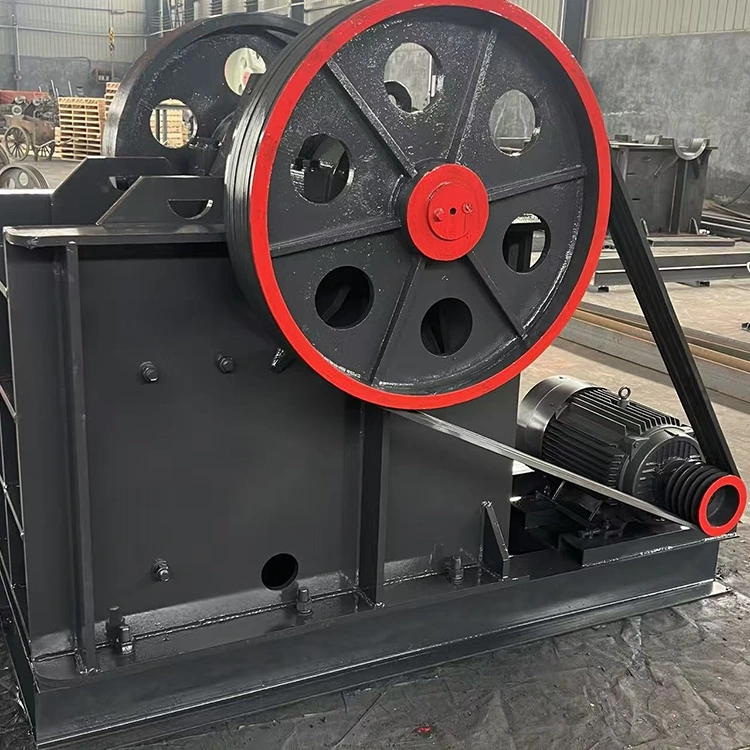

2.Overall Appearance (Side View): The compact eccentric shaft drive structure saves space and facilitates integration into production lines.

3.Crushing Chamber Interior (High-Manganese Steel Tooth Plate Detail): The high-manganese steel tooth plate (hardness HRC58+) is wear-resistant and impact-resistant, extending the equipment's service life.

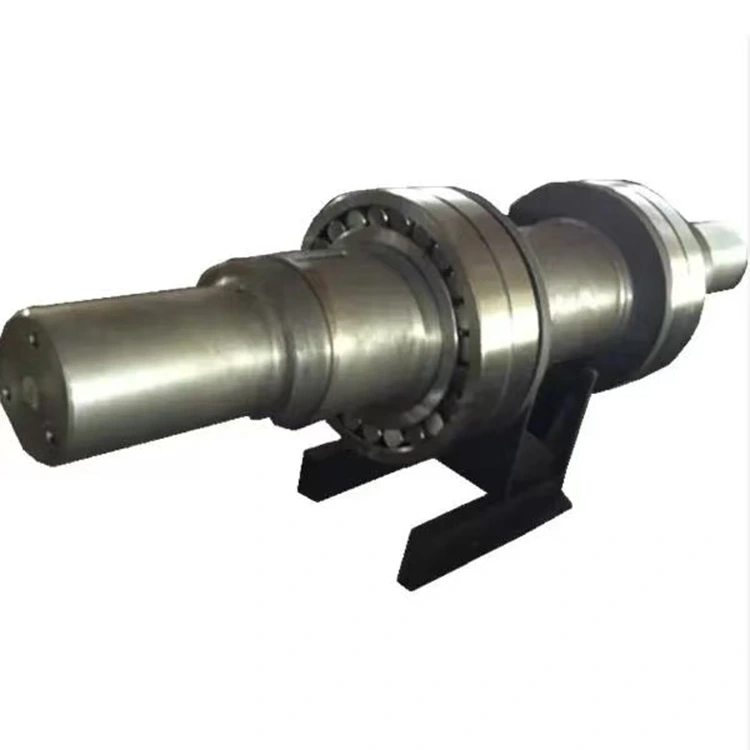

4.Eccentric shaft + bearing component diagram: The thickened eccentric shaft paired with a sealed bearing ensures stable operation, low noise, and long maintenance intervals.

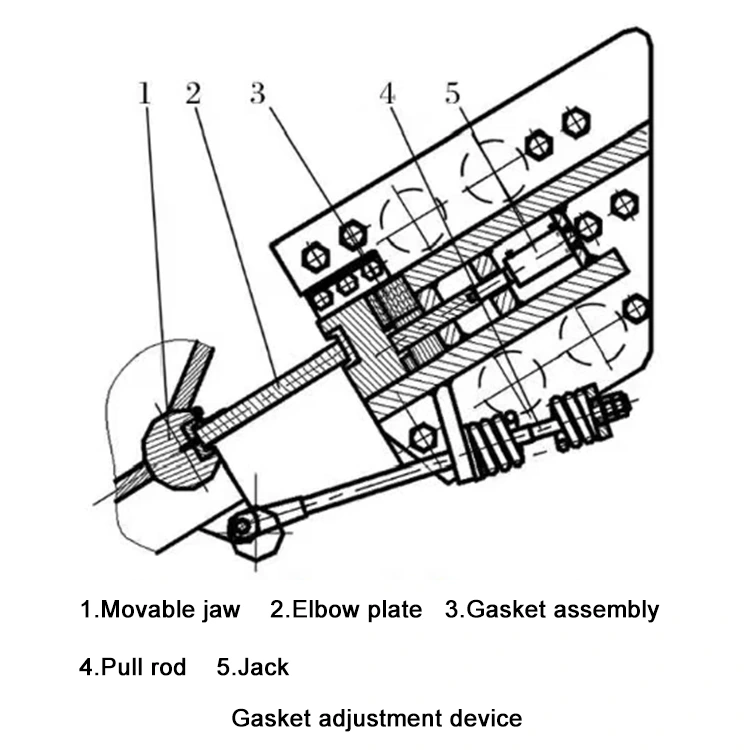

5.Discharge Port Adjustment Operation Diagram: Discharge Port Adjustment Device | Manual/Hydraulic Adjustment (Optional), Precise Control of Discharge Particle Size (10-120mm) Shim-Type Manual Adjustment Device: The diagram below shows the shim-type discharge port adjustment device. The discharge port size is adjusted by pushing the elbow plate seat with bolts and removing or adding shims. The diagram shows components such as the moving jaw, elbow plate, shim assembly, and pull rod.

6.Hydraulic Adjustment Device: The image below shows a hydraulic adjustment device for the discharge port of a jaw crusher. The discharge port size is adjusted by pushing relevant components through a hydraulic cylinder, which can achieve stepless and precise adjustment.
