Tangshan Yuexin Machinery Manufacturing Co., Ltd.: From Raw Material to Finished Product, Large Workpiece Processing Completely Within the Factory

Stepping into the workshop of Tangshan Yuexin Machinery Manufacturing Co., Ltd., a 100-ton overhead crane hoists large workpieces. CNC gantry machining centers, heavy-duty CNC lathes, and floor-type milling machines are clearly divided in their functions. From blanking to riveting and welding, all processes are completed within the factory area. The company undertakes the processing of large non-standard parts for the metallurgical, mining, thermal power, and construction machinery industries, and can accept foreign trade orders.

From entering the factory to leaving, a large workpiece at Tangshan Yuexin Machinery Manufacturing Co., Ltd. undergoes several processes: blanking, forming, machining, and riveting and welding assembly. The raw material is hoisted onto a 100-ton overhead crane and circulates between various machines. The entire production line is completed within the factory area, eliminating the need for customers to send it to other factories.

Blanking, forming to riveting and welding—no step is omitted.

In the blanking area, a flame plasma cutting machine is cutting thick plates. Thick plate cutting is completed within the factory, eliminating the need for external shipment. The cut materials are pressed and straightened on a press, drilled and tapped on a drilling machine, and after the blanks are formed, they enter the riveting and welding process. Assembly, welding, and jointing are smooth. The processes are concentrated in the factory, ensuring controllable delivery times and clear quality responsibilities.

Flat parts and rotating parts each have their own dedicated equipment.

The large CNC equipment in the workshop is divided according to part type. Flat parts are mainly handled by the CNC gantry machining center, which covers a range of sizes including 8m × 12.5m × 4m, 8.5m × 4.6m × 2m, 6m × 3.2m × 1.7m, 6m × 3m × 1.5m, and 3m × 2m × 1m. Large components such as the bed, frame, and worktable are directly machined onto the gantry. A floor-type boring and milling machine with a 6-meter travel is used for boring and milling large box-shaped parts and bases; the fully closed-loop CNC boring and milling machining center offers stable positioning accuracy and is used for precision parts with strict dimensional requirements.

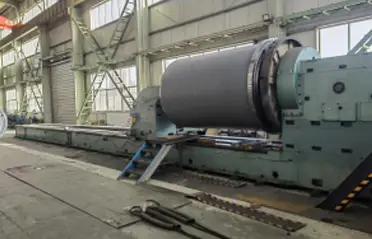

Rotating parts are processed on a separate line. A 2.5m x 17m heavy-duty CNC horizontal lathe is specifically designed for rolls, roller bodies, and long shafts. With a 17m length, multiple processes can be completed in a single clamping operation. Two vertical lathes, one 2.5m x 1.6m and the other 1.6m x 1m, are available; one large and one small, for discs, flanges, and end caps, categorized by specifications. A standard horizontal lathe has a machining length of 8 meters and a maximum machining diameter of 1 meter, used for rough machining and repair fittings.

Lifting Capacity:

Lifting is an essential part of large-part processing. A 100-ton overhead crane can handle the loading, turning, and clamping of large workpieces, and also provides support for the riveting and welding assembly of large structural components. For workpieces weighing tens or even hundreds of tons, customers can have raw materials delivered to the factory and finished products shipped out, eliminating the need for multiple manufacturers.

Customers and Orders

The company is located in the Fengnan steel and equipment manufacturing industrial belt, allowing for convenient procurement of raw materials. Our services focus on industries such as metallurgy, mining, thermal power, and construction machinery. Our clients are primarily located in Hebei and the Beijing-Tianjin region, and we also have the capacity to handle export orders. We welcome inquiries with provided drawings and processing with supplied materials. Factory visits are welcome.

While individual equipment items can be listed, processing capacity is truly tested by the entire production line. Tangshan Yuexin Machinery Manufacturing Co., Ltd., with its processing and welding capabilities, completes the entire process from raw material to finished product within its own workshop.
